Description: Two phase frictional pressure drop

Reference: Muller-Steinhagen, H. Heck. K. A simple friction pressure drop correlation for two phase flow in pipes Chem Eng. Proc. 20 297-308 1986

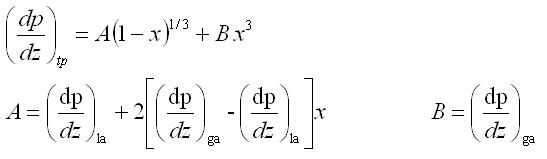

Equations/Symbols:

Calculate:
Insert saturation temperature (Tsat), mass velocity (G), vapor quality (x) and tube diameter (D) and press 'Calculate'.

Fluid: R134a Water Air-water T_sat (K): p (Pa)*: G (kg/s/m²): x (-): D (m):
* pressure is used only for air-water flow.

Fluid properties: rhol=1,191.95 kg/m3 rhov=36.29 kg/m3 mul=0.000185310 Pa.s muv=0.000012141 Pa.s	Dimensionless numbers Rel=2,158.55 Reg=32,945.58	Frictional pressure drop (dp/dz)Muller_Heck_1986=5,944.63 Pa/m (dp/dz)Tibirica_etal_2017=7,611.53 Pa/m
