Description: Heat transfer coefficients for convective boiling.

Reference: Chen, J. C. Correlation for boiling heat transfer to saturated fluids in convective flow. I&EC Process Design and Development. vol.5, 3, 322-329. 1966

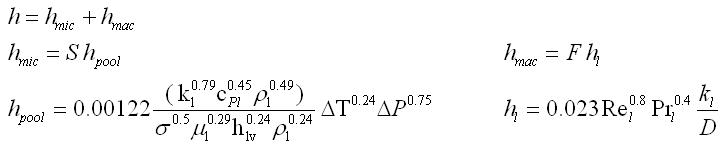

Equations/Symbols:

Calculate:
Insert saturation temperature (Tsat), mass velocity (G), heat flux (q), vapor quality (x), tube diameter (D), inlet vapor quality (xin) and press 'Calculate'.
Fluid: Tsat (K): G (kg/s/m2): q (W/m2): x (-): D (m):
xin (-): [used only for post-dryout heat transfer coefficient in Tibirica et al. 2017]
Fluid properties:
ρl=1,191.95 kg/m3
cpl=1,440.13 J/(kg.K)
μl=0.000185310 Pa.s
kl=0.0814 W/(m.K)
hlv=174,184.70 J/kg
σ=0.007527 N/m
 Dimensionless numbers
Rel=1,942.69
S=0.82
F=5.59
 Heat transfer coefficient
hChen1966=9,672.00 W/m2.K
hTibirica2017=9,087.95 W/m2.K
